TAGLOCK™ circuit breaker securing devices
Category Lockout & Tagout
Brady
Step up safety and compliance with physically secure tagout for up to four workers.

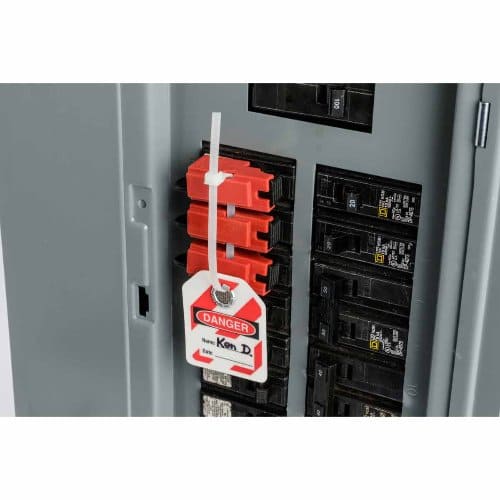

• Quick and easy to apply with a nylon cable tie and the worker’s ID tag
• Up to 4 workers can apply a nylon cable tie and their ID tag
• Compatible with GE, ITE, Sylvania, Challenger, Bryan, General Switch Co., Westinghouse, etc., breakers
• Alternatively, every model can be locked with 1 padlock.
Models & Usage :

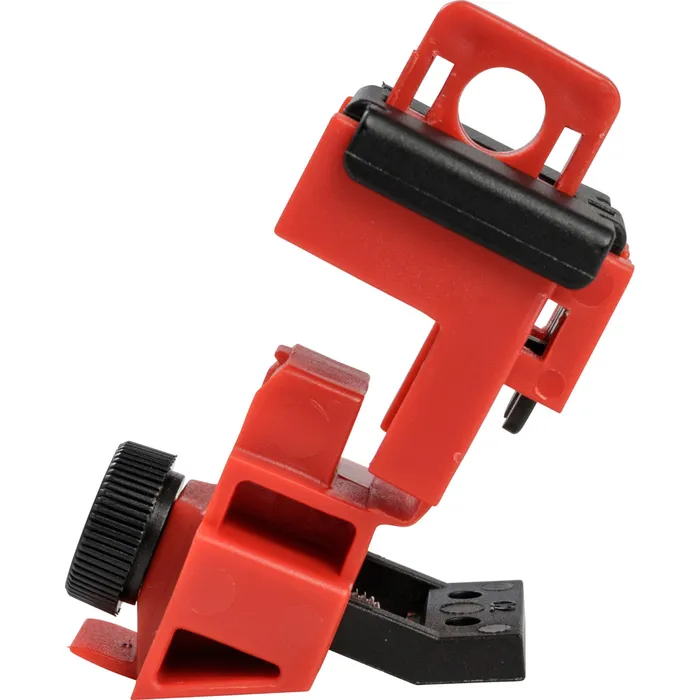

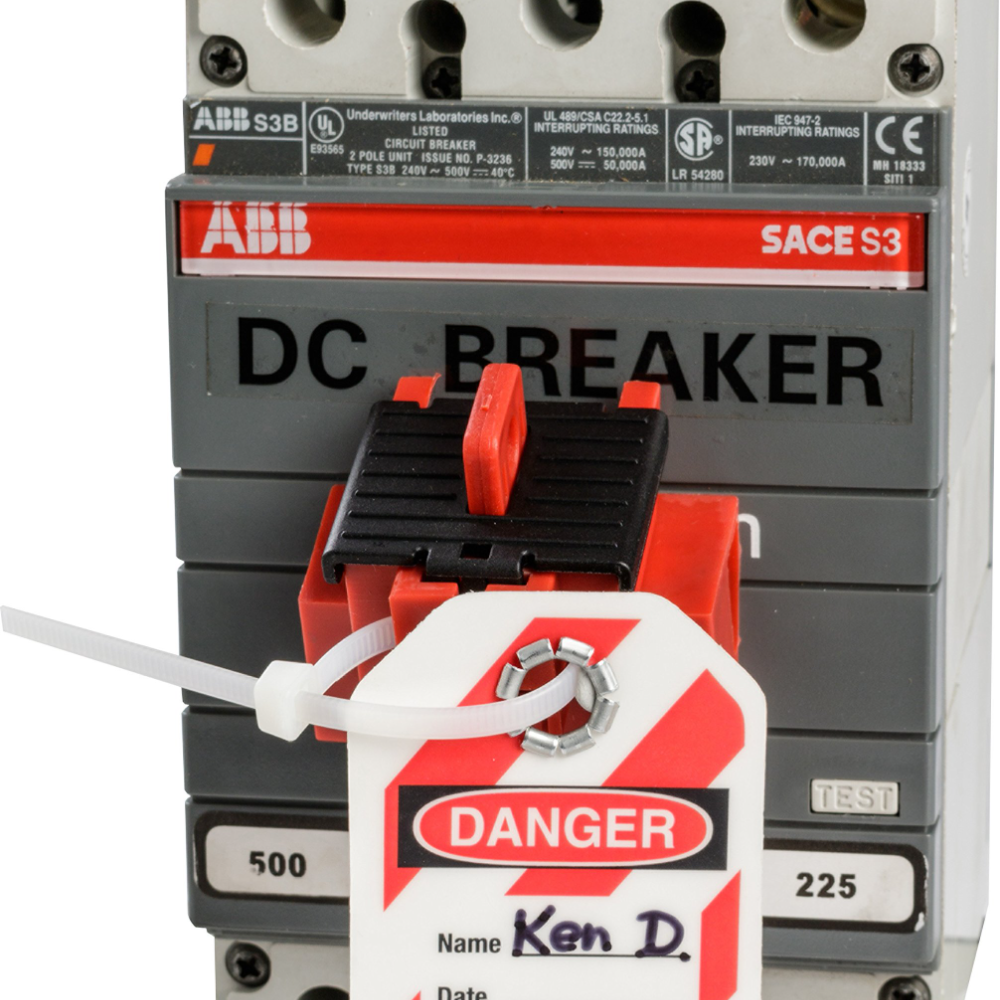

Clamp-on: works on wide range of single-pole and internal-trip multi-pole breakers, use thumbscrews to clamp lockout securely onto switch tongue, then pull cover over thumbscrew and lock with a nylon tie/padlock in place to prevent clamp from being loosened. Oversized, 480/600V and 120/277V.
Multi-pole: works with most two or three pole breakers utilising a tie-bar, use thumbscrews to clamp lockout securely over tiebar, then insert nylon tie/padlock to prevent clamp from being loosened.
Switch: works on wide range of breakers, including single- and multi-pole configurations and allows panel door to be closed even when lockouts are in place.

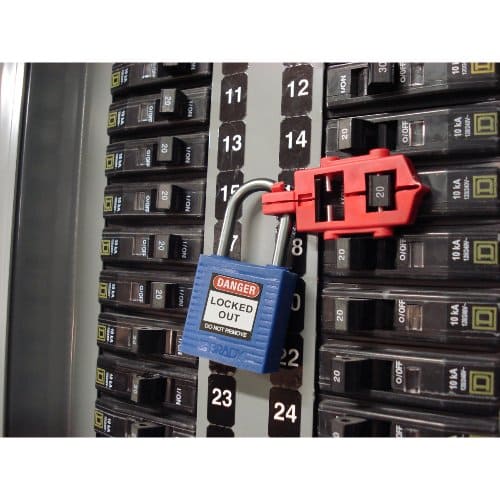

Snap-on: designed for breakers that have holes in the switch tongue, dual cavities accommodate different size switch tongues.
